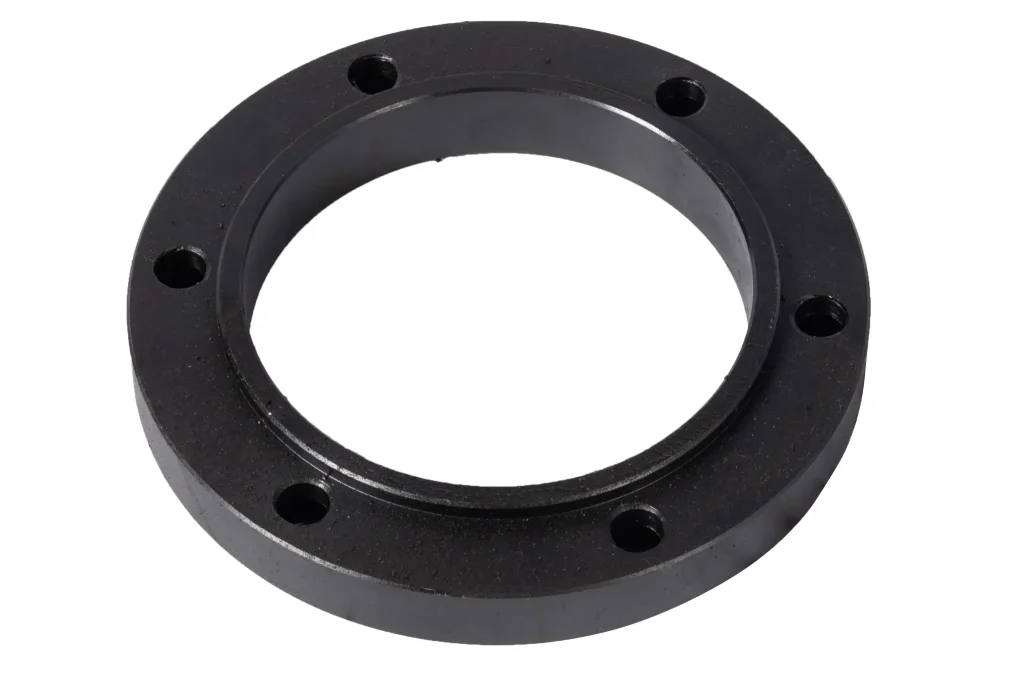

A bearing support flange is a mechanical connection and support component used in industrial equipment and mechanical systems for bearing positioning, component fixing, and structural support of rotating assemblies.
The product is manufactured through casting processes combined with CNC precision machining. Casting is used to form the main structural body, while CNC machining is applied to the center bore, mounting holes, and critical fitting surfaces. The flange structure connects with the equipment body to provide stable support for bearing assemblies and maintain accurate positioning during rotating operation.
Based on customer drawings, samples, or technical requirements, we provide customized bearing support flange manufacturing solutions, including structural optimization, casting process selection, and precision machining plans to meet different requirements for mechanical strength, dimensional accuracy, and installation performance.
Applications
Bearing support flanges are widely used in industrial machinery, rotating equipment, transmission systems, and customized mechanical components.
Industrial Machinery
Used for bearing assembly support and installation in industrial equipment. The flange connection structure secures rotating components to the machine body and improves operational stability.
Rotating Equipment
Applied in mechanical equipment with rotating shafts, providing positioning and support for bearings and related components to maintain reliable operation.
Transmission Systems
Used in drive mechanisms, gear systems, and power transmission equipment where shaft positioning, component connection, and structural support are required.
Custom Mechanical Equipment
Suitable for customized machinery and industrial applications requiring flange connections, bearing support structures, and precision mounting solutions.
Product Advantages
Stable Support Structure
The flange design provides a larger mounting contact area and can be secured to equipment structures through bolts, providing stable and reliable support for bearing assemblies.
Precision Machined Fitting Areas
Critical areas including center bores, mounting holes, and contact surfaces can be CNC machined to achieve accurate dimensions for bearing installation and mechanical assembly.
Integrated Manufacturing Through Casting
Casting enables the production of integrated components with reliable structural strength while reducing assembly requirements compared with multi-part structures.
Flexible Customization Capability
The product can be customized according to customer drawings, samples, and application requirements, including dimensions, hole patterns, and machining specifications.
Manufacturing Capabilities
We provide customized bearing support flange manufacturing services, supporting complete production processes from casting to precision machining.
Based on project requirements, we assist with product structure evaluation, casting process planning, and CNC machining solutions to support prototype development, small-batch production, and volume manufacturing.
Our manufacturing processes include casting production, bore machining, mounting hole machining, precision surface machining, and dimensional inspection. Through controlled manufacturing processes, we provide reliable customized bearing support flanges for industrial machinery, transmission equipment, and rotating systems.
