Agricultural Machinery Casting
Agricultural machinery casting is used to produce metal components for farming and agricultural equipment that require structural support, transmission protection, and functional assembly. These cast parts are commonly applied in tractors, harvesters, tillage equipment, irrigation systems, and other machinery that operates under demanding outdoor and working conditions.
Typical agricultural machinery casting applications include housings, covers, brackets, supports, flange-related parts, and other functional metal components. In these projects, practical strength, stable production, and machining compatibility all affect the final casting solution. Minhe supports custom agricultural machinery casting projects with material selection, casting, machining, and inspection based on part drawings and project requirements.
Typical Agricultural Machinery Cast Components
Agricultural machinery castings often include a range of structural and functional components used for transmission support, equipment connection, protection, and assembly positioning. Common projects may involve housing parts, support structures, mounting components, and other cast parts designed for stable service in outdoor working conditions.
1. Gearbox Housings
Used for enclosing transmission structures and supporting internal mechanical assemblies in agricultural equipment. Commonly made in gray iron, ductile iron, or cast steel depending on load and working conditions.
2. Bearing Supports
Applied where stable shaft positioning and load support are required in rotating assemblies. Common materials include ductile iron and cast steel for strength and service stability.
3. Mounting Brackets
Used for equipment connection, installation, and positional support across different machinery structures. These parts are often produced in ductile iron, gray iron, or cast steel according to structural requirements.
4. Flange Blocks
Suitable for joining, positioning, and supporting connected parts in agricultural equipment assemblies. Ductile iron and cast steel are commonly selected for strength and reliable connection performance.
5. Pillow Block Housings
Commonly used for bearing-related support structures that require stable mounting and durable service performance. Typical materials include gray iron, ductile iron, and cast steel.
Common Cast Parts for Agricultural Machinery

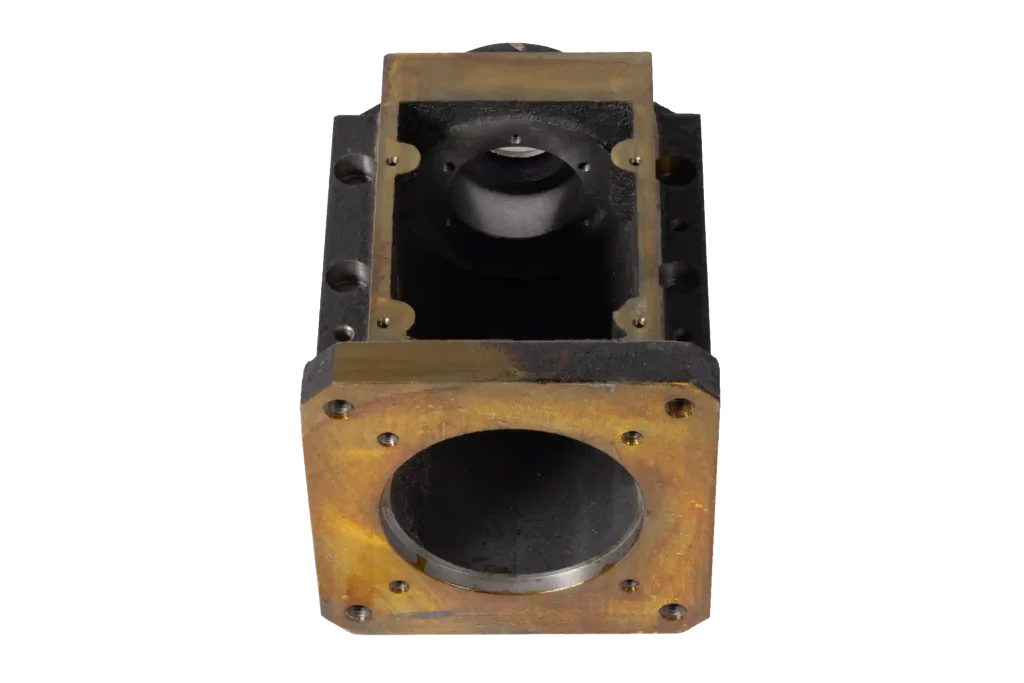

Gearbox Housing

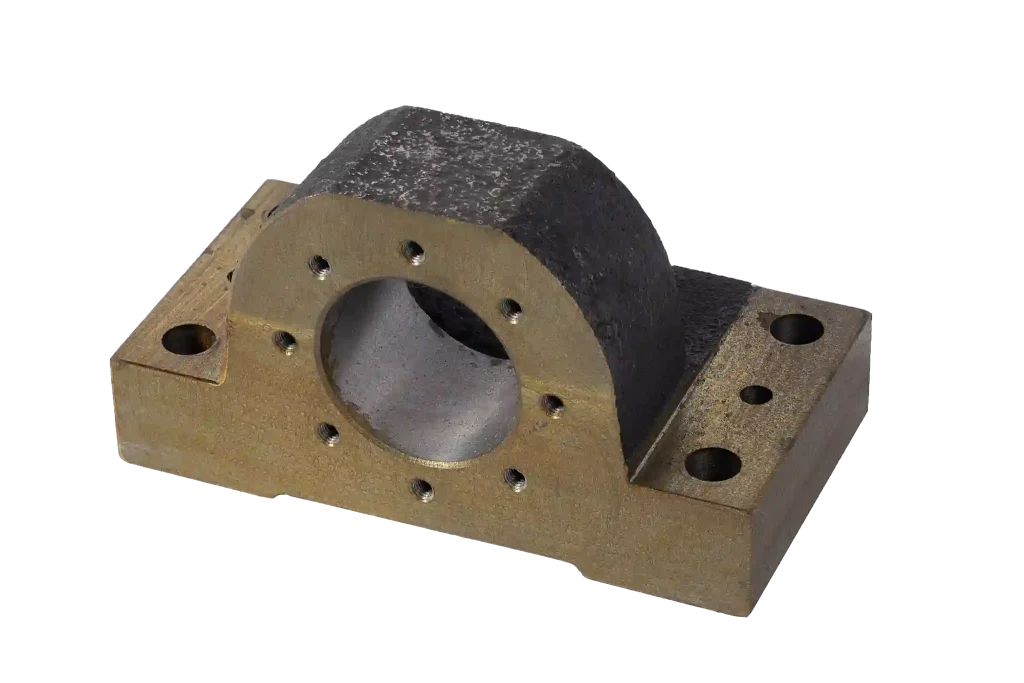

Bearing Support

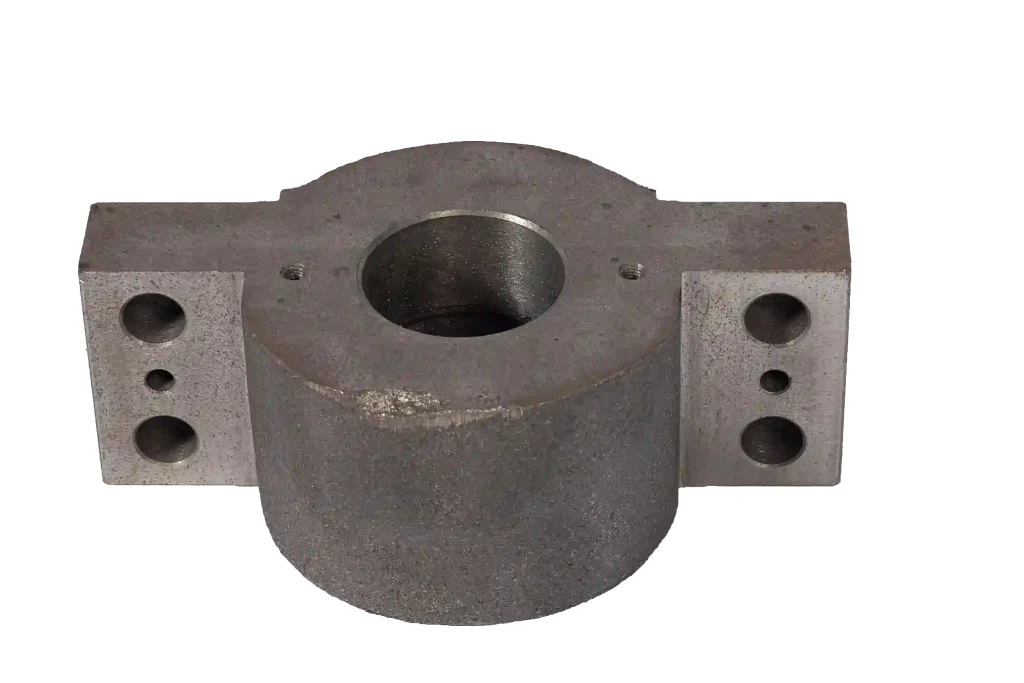

Flange Block

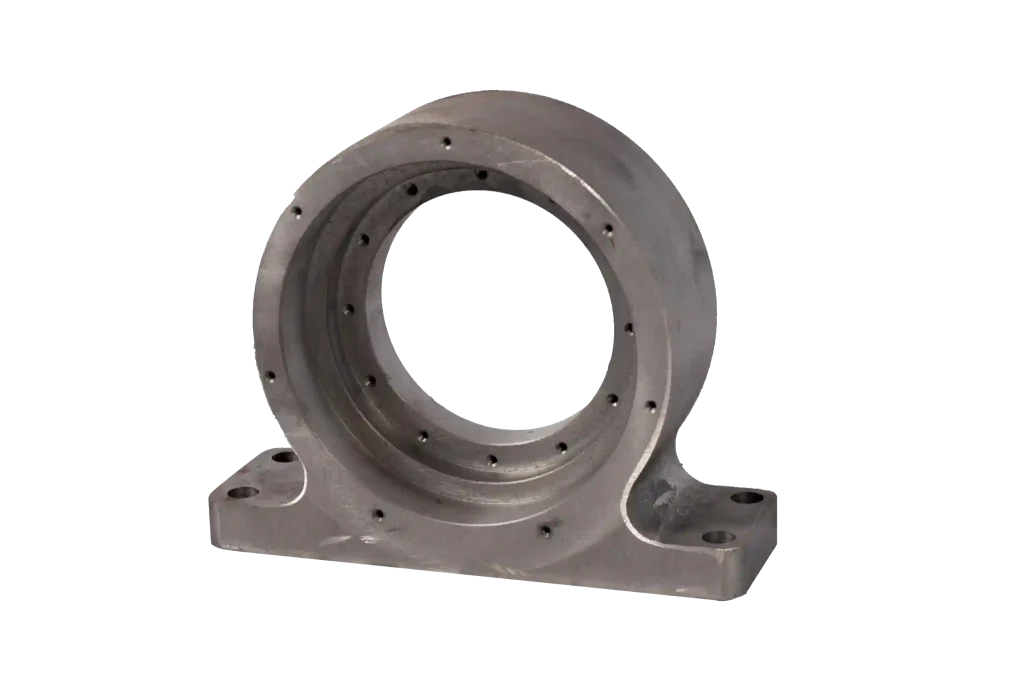

Pillow Block Housing

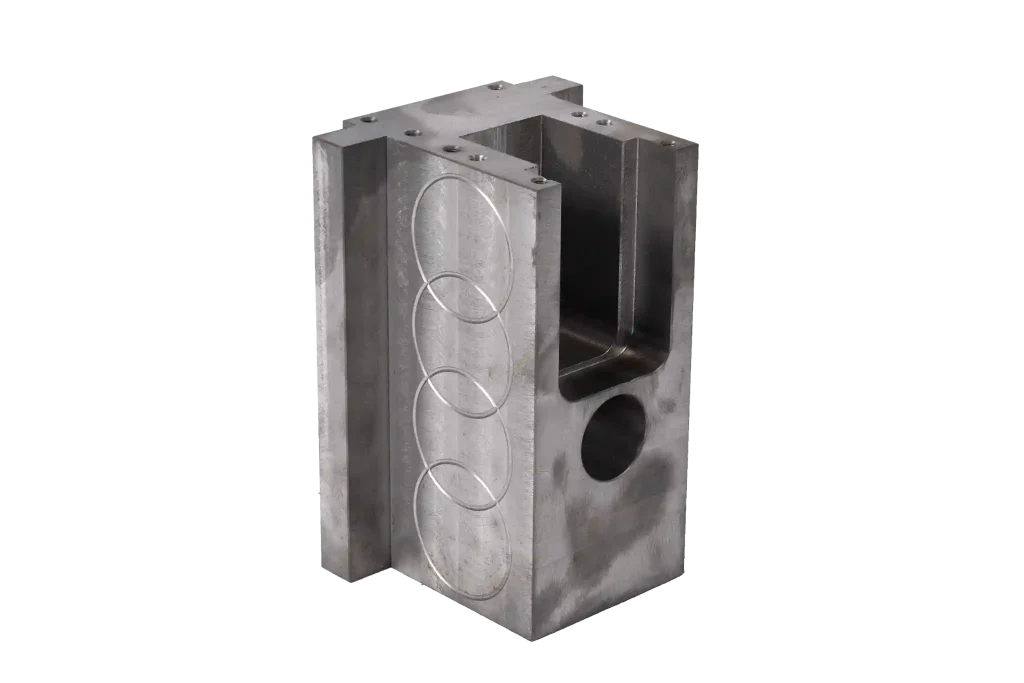

Structural Block

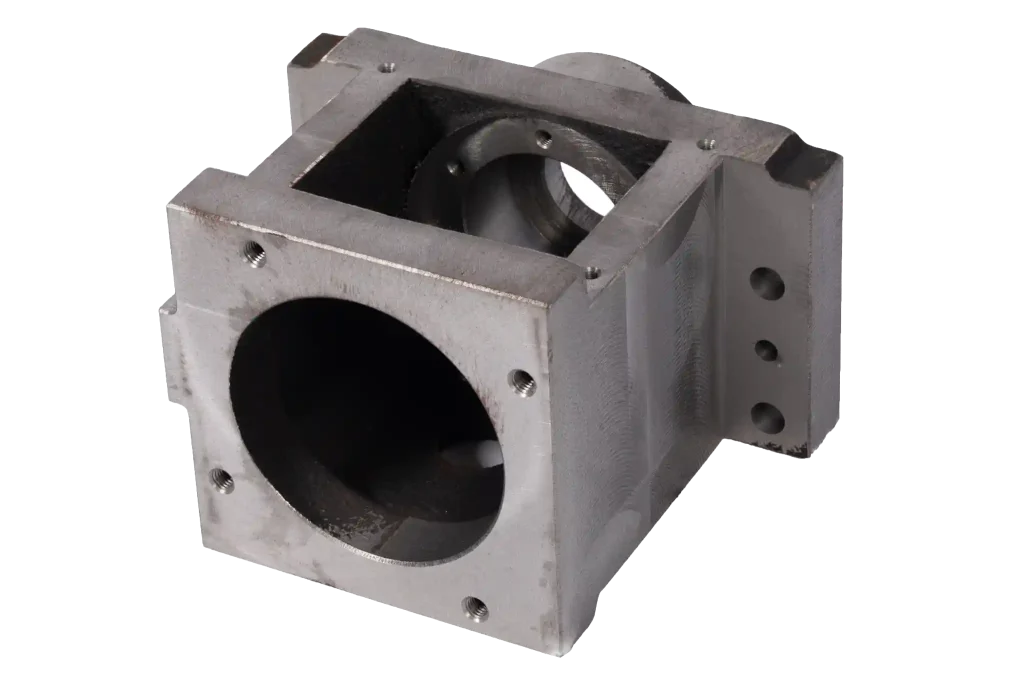

Mounting Block
Common Materials for Agricultural Machinery Castings
Agricultural machinery castings are commonly produced in ductile iron, gray iron, cast steel, and selected aluminum alloys. The most suitable material depends on part function, working conditions, load requirements, wear resistance, and machining needs after casting. With experience in custom cast parts for different structures and service conditions, Minhe supports material selection based on part drawings, production practicality, and follow-up machining requirements.
Ductile Iron
Choose ductile iron when the part requires better strength, toughness, and reliable load-bearing performance. It is commonly used for support parts, bearing-related structures, and other agricultural castings under higher working loads. Its main advantage is balanced strength and castability, although it is usually heavier than aluminum options.
Gray Iron
Gray iron is suitable for housings, covers, and general structural parts where castability, machining performance, and cost efficiency are important. It is often selected for gearbox housings and protective covers in agricultural equipment. Its advantage is stable casting and good machinability, but it is less tough than ductile iron.
Cast Steel
Cast steel is used for heavier-duty agricultural components that require higher mechanical strength and more demanding service reliability. It is often considered for reinforced structural parts and connection-related assemblies. Its strength is a key advantage, while higher production cost is a common trade-off.
Aluminum Alloys
Aluminum alloys may be selected for lighter-weight parts where reduced mass and easier machining are priorities. They are more suitable for selected covers, housings, and non-heavy-duty structural parts. Their advantage is lower weight, but they are not always the first choice for high-load agricultural castings.
Suitable Casting Methods for Agricultural Machinery Castings
Sand Casting
Suitable for larger, heavier, and more complex agricultural castings where practical cost control and structural flexibility are important. It is commonly used for housings, brackets, support parts, and other general structural components.
Shell Molding
Provides better dimensional consistency and surface quality for smaller or more detailed agricultural castings. It is often used for connection-related parts, covers, and selected medium-sized components that require cleaner casting results.
Lost Foam Casting
Suitable for castings with more integrated geometry and fewer parting line limitations. It is often considered for agricultural parts where design flexibility and reduced machining demand are important.
Minghe Agricultural Machinery Casting Advantages
Agricultural machinery castings generally require a balance of structural strength, production feasibility, assembly fit, and consistent performance during long-term use. Minghe focuses on integrating actual working conditions, part structures, and post-processing requirements to provide more practical judgments and coordination for project implementation.
Part Structural Requirements: Evaluating the load-bearing positions and assembly needs of common agricultural castings—such as housings, supports, and connectors—to determine the most appropriate production schemes.
Material Performance Range: Narrowing down the suitable material selection based on load, wear resistance, operating environment, and subsequent machining requirements.
Post-Casting Machining Alignment: Pre-considering the alignment between castings and machining processes for mounting surfaces, interfaces, hole positions, and other assembly-related features.
Project Execution Milestones: Maintaining stable transitions and progress across casting, inspection, subsequent machining, and delivery to ensure the steady advancement of mass production.
