Automotive Casting
Automotive casting is used to produce metal components for vehicle systems that require structural support, enclosure protection, connection features, and functional assembly. These cast parts are commonly applied in transmission systems, engine-related structures, mounting sections, pump housings, covers, brackets, and other automotive components that require stable production and machining compatibility.
Typical automotive casting applications include housings, covers, brackets, bearing supports, and other functional metal parts. In these projects, material selection, dimensional consistency, and downstream machining requirements all influence the final casting solution. Minhe supports custom automotive casting projects with material selection, casting coordination, machining, and inspection based on part drawings and application needs.
Typical Automotive Cast Components
Automotive casting is commonly used for housings, covers, brackets, supports, and other structural or functional components in vehicle systems. Typical cast parts are selected based on load conditions, dimensional requirements, material performance, and downstream machining needs.
1. Gearbox Housings
Used to enclose transmission-related structures and support internal mechanical assemblies in automotive systems. These parts are often selected for dimensional stability, structural strength, and machining compatibility.
2. Bearing Supports
Applied where stable shaft positioning and load support are required in rotating assemblies. Material selection typically depends on strength, service conditions, and long-term stability.
3. Mounting Brackets
Used for structural connection, installation support, and component positioning across different vehicle systems. These cast parts often need a practical balance of strength, weight, and production efficiency.
4. Flange Components
Suitable for joining, positioning, and supporting connected parts in automotive assemblies. They are often selected based on assembly requirements, structural demands, and machining needs.
5. Pump Housings
Commonly used in automotive fluid-related systems where structural stability and machining compatibility are important. Material choice depends on service conditions and downstream processing requirements.
Typical Automotive Cast Components
Gearbox Housing

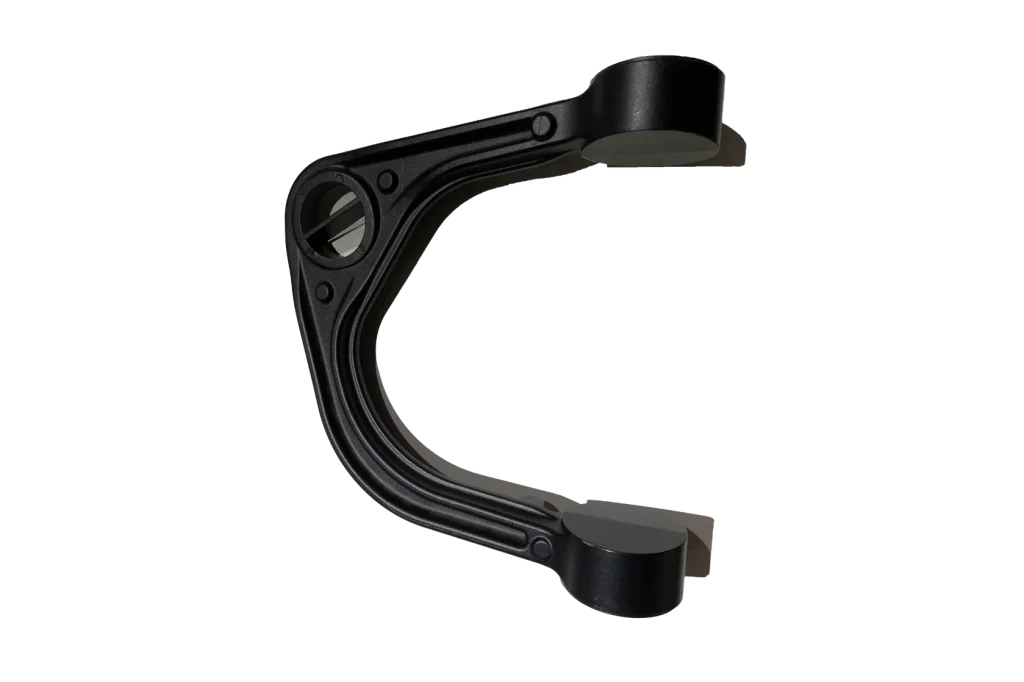

Suspension Arm

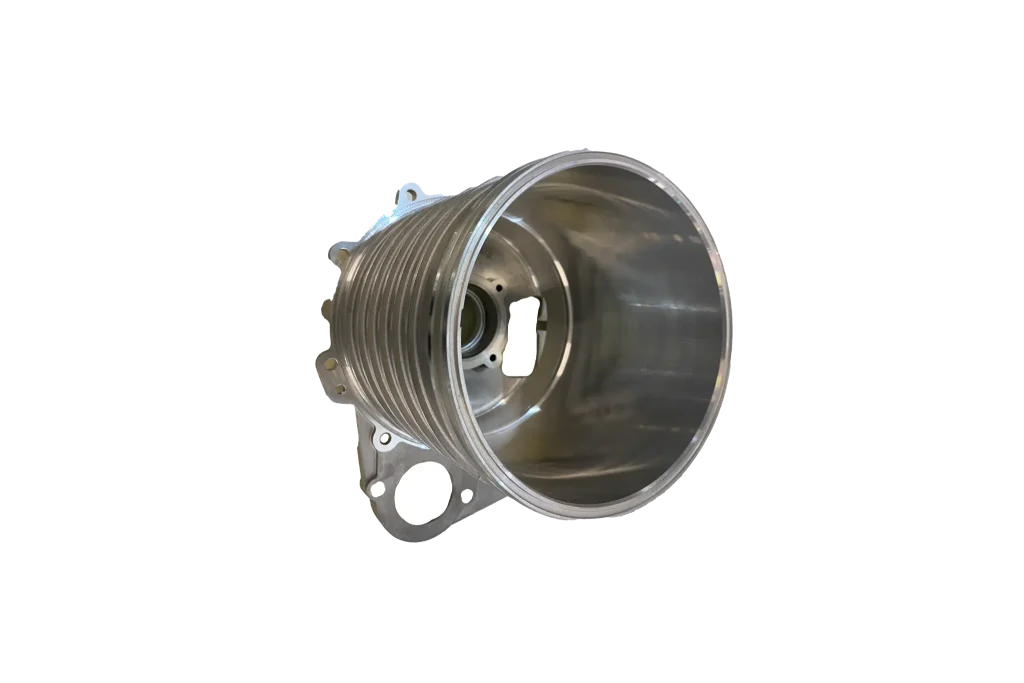

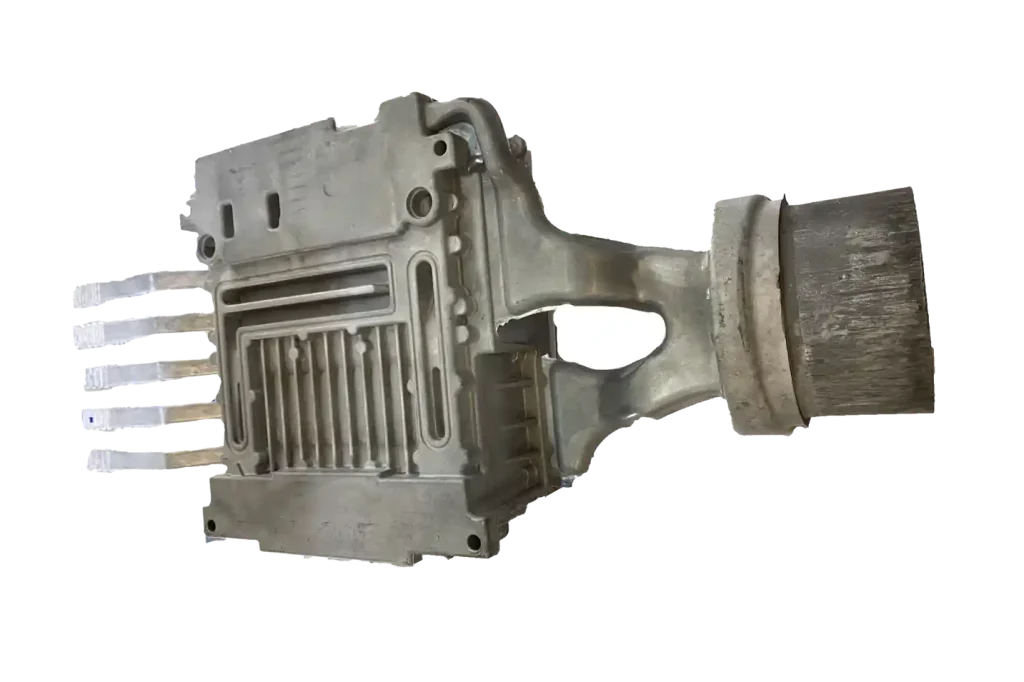

Finned Housing

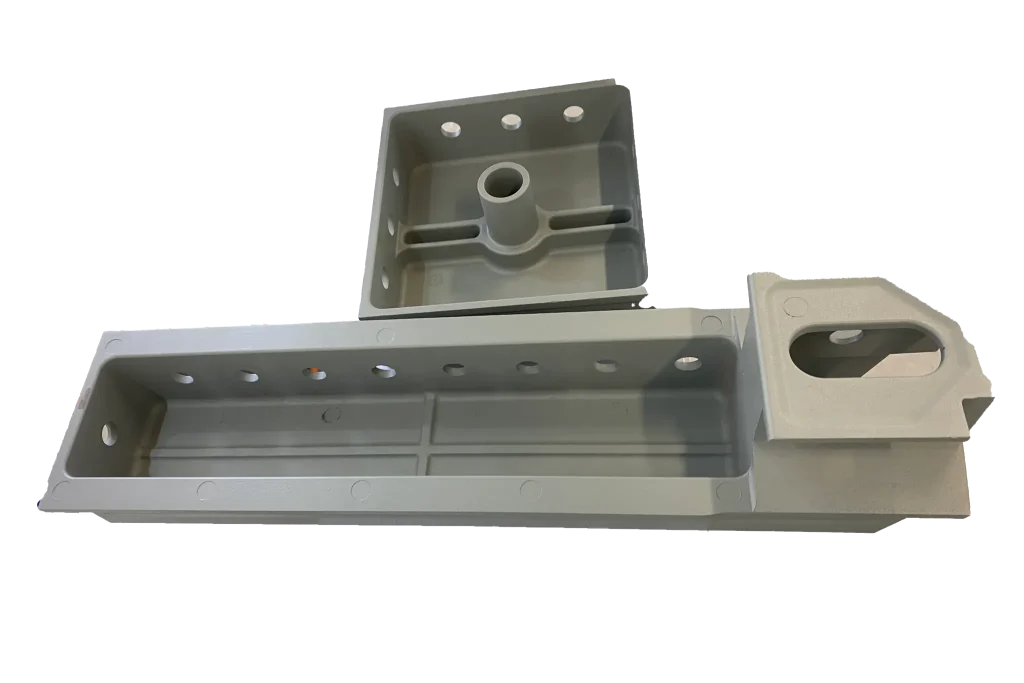

Base Frame Housing

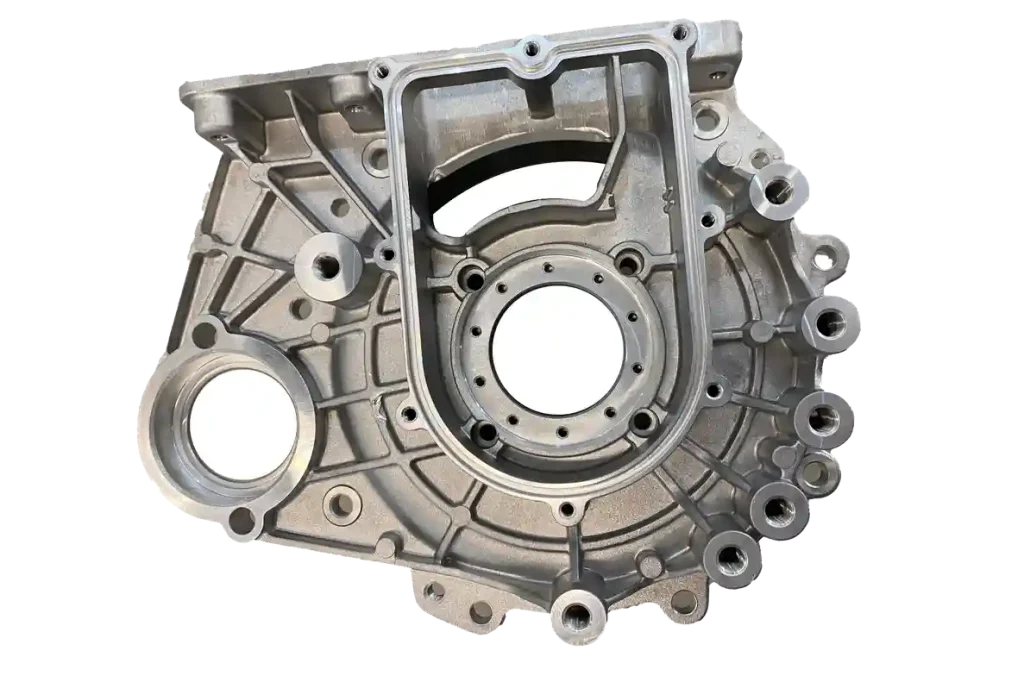

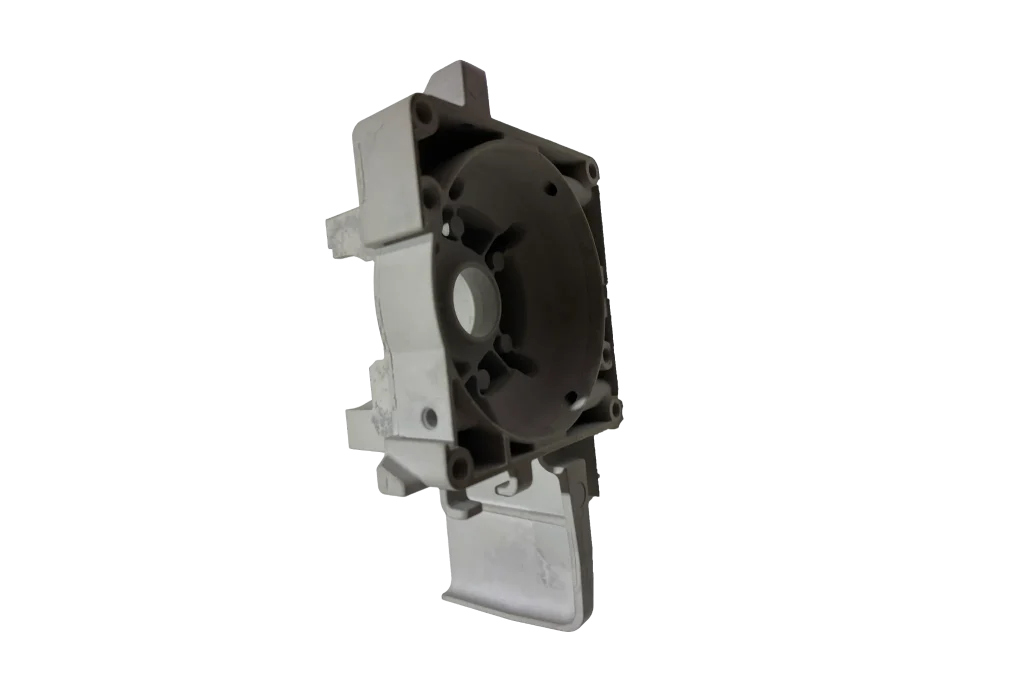

Gearbox Cover

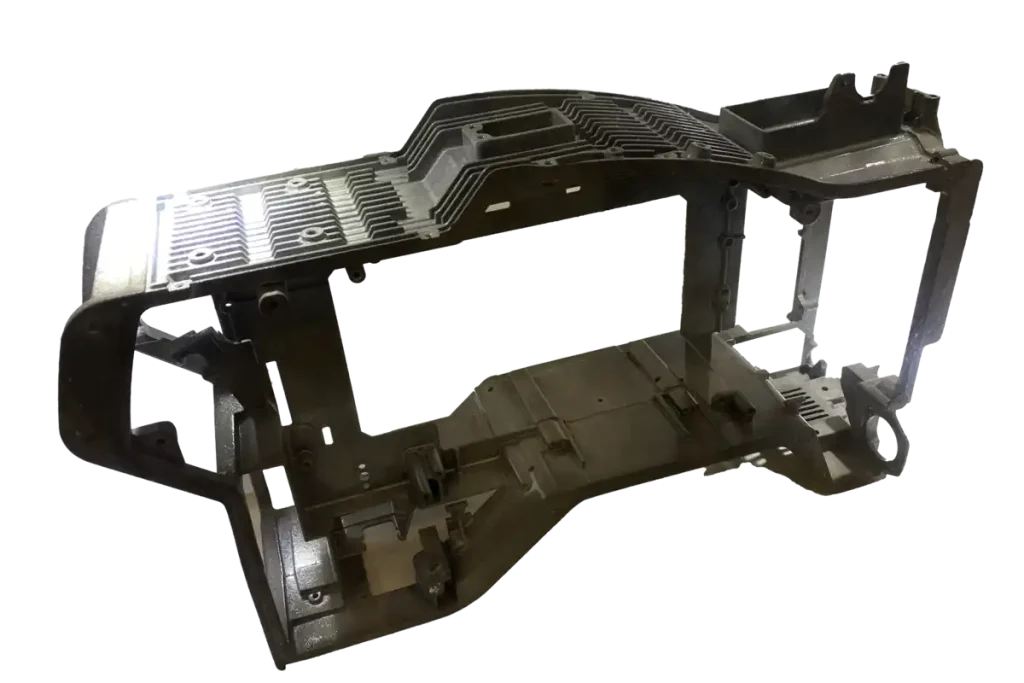

Structural Frame
Common Materials for Automotive Castings
Automotive castings are produced in different materials depending on part function, weight targets, strength requirements, thermal conditions, corrosion exposure, and post-machining needs. Common choices include ductile iron, gray iron, cast steel, and aluminum alloys, each suited to different structural and functional demands.
Ductile Iron
Ductile iron is widely used for cast parts that require a balanced combination of strength, toughness, and fatigue resistance. It is often selected for brackets, supports, housings, and suspension-related components that work under repeated mechanical loads.
Gray Iron
Gray iron is commonly used for housings, covers, and other parts where castability, vibration damping, and machining efficiency are important. It remains a practical option for components that do not require the higher toughness of ductile iron.
Cast Steel
Cast steel is suitable for components exposed to higher impact loads or more demanding structural conditions. It is typically considered for parts that require greater strength and durability, although it usually involves higher production cost and weight.
Aluminum Alloys
Aluminum alloys are widely used where lightweight design, thermal performance, and corrosion resistance are priorities. They are common in housings, covers, and selected structural components where reducing vehicle mass is important.
Suitable Casting Methods for Automotive Castings
Sand Casting
Suitable for larger automotive castings and structural parts where design flexibility, practical tooling cost, and material adaptability are important. It is often used for housings, brackets, supports, and other cast components that do not require the tighter dimensional consistency of precision-oriented molding methods.

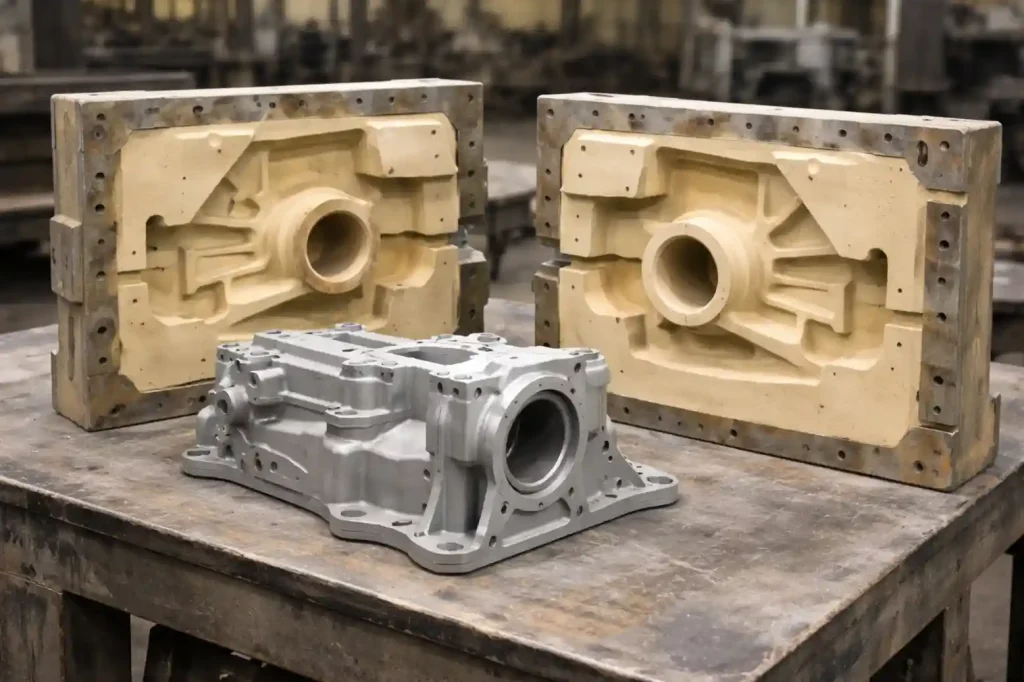

Shell Molding
Shell molding is a good option for automotive cast parts that require better dimensional consistency, cleaner surface finish, and more repeatable production quality. It is commonly considered for medium-sized housings, covers, and connection-related parts with more detailed geometry.

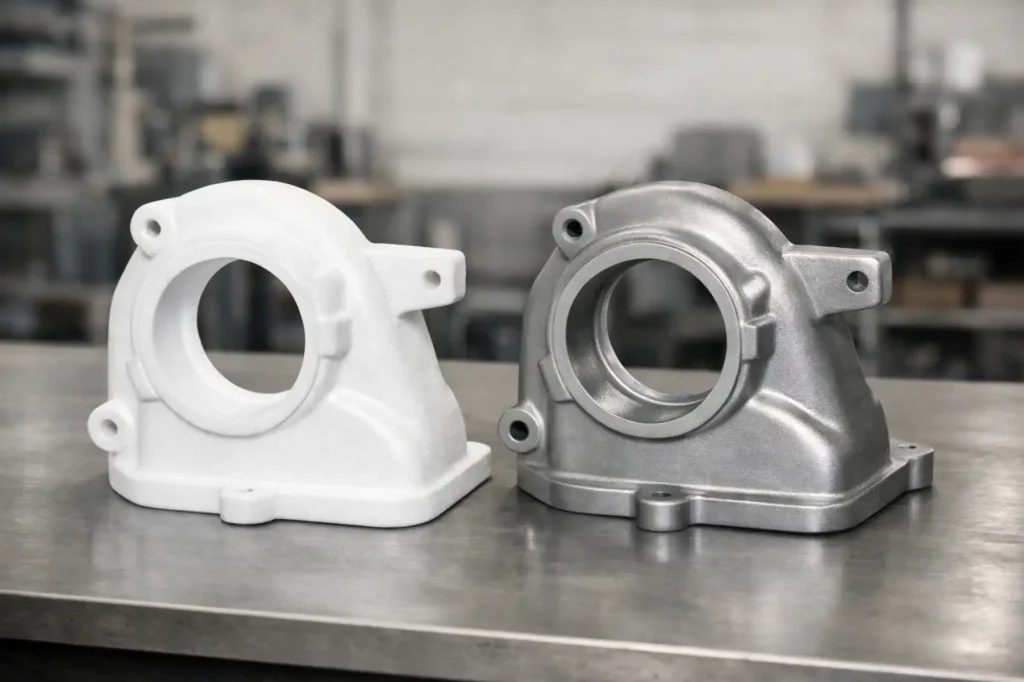

Lost Foam Casting
Lost foam casting is suitable for automotive components with more integrated geometry and reduced parting-line limitations. It is often used when part consolidation, design freedom, and lower machining demand are important considerations.
Why Minhe for Automotive Castings
Automotive casting projects require a balance of structural performance, dimensional consistency, machining compatibility, and stable production execution. Minhe supports this process by combining casting review, material selection, quality control, and downstream machining coordination for practical automotive applications.
- Part Structure Review: Evaluating load-bearing areas, mounting features, and interface geometry to support more suitable casting solutions.
- Material and Process Matching: Recommending appropriate material and production routes based on strength targets, weight goals, and service conditions.
- Quality Control and Certification Support: Operating under an ISO 9001 quality management framework with inspection control for critical dimensions, casting quality, and follow-up machining requirements.
- Machining Coordination: Considering bores, mounting faces, hole locations, and sealing interfaces early to improve downstream processing efficiency.
- Stable Project Execution: Supporting repeatable progress across casting, inspection, machining, and delivery for batch production needs.
