Valued for its conductivity and corrosion resistance, copper is a primary material in electrical and high-precision casting applications. In industrial practice, density data serves as a practical reference for cost accounting, material estimation, and logistics planning.
This guide provides a structured reference for copper and alloy densities, ranging from basic properties to detailed grade tables. By including alloy analyses and cross-metal comparisons, it offers a reliable data source for material selection and engineering design.

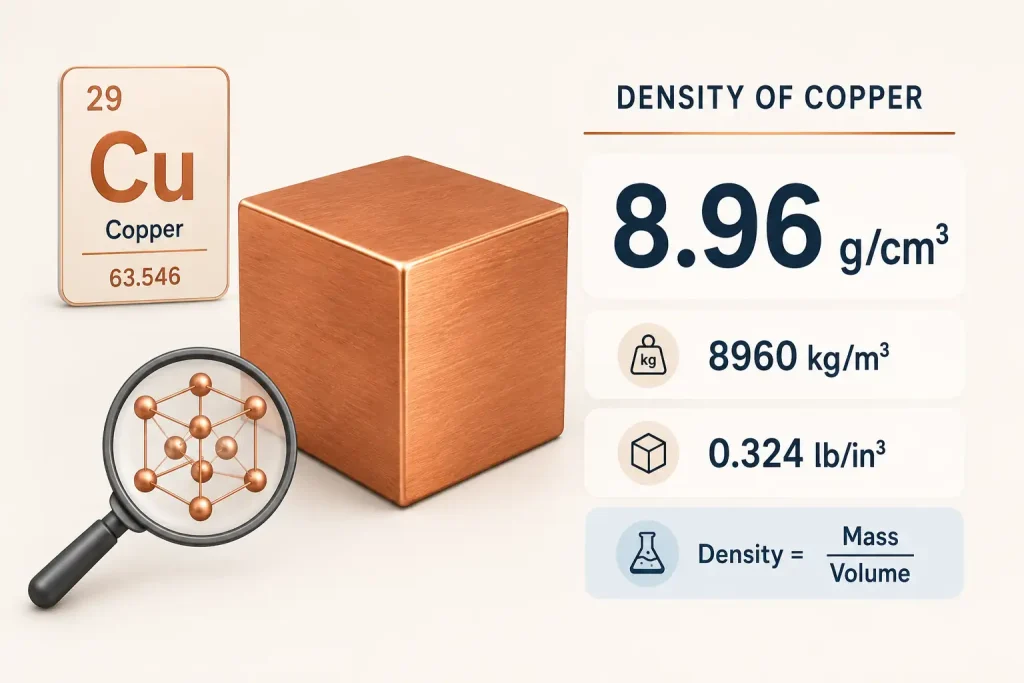

What Is the Density of Copper?
Pure copper has a density of about 8.96 g/cm³. This is a fundamental physical property that represents the mass of the metal per unit of volume. In SI units, this is also equal to about 8960 kg/m³.
In imperial units, copper density is about 0.324 lb/in³ or 559 lb/ft³. This value is commonly used as an engineering reference during the initial design and quotation stages. It is important to note that actual density may vary slightly depending on the purity of the metal, the ambient temperature, and the specific alloy composition.
Density of Different Copper Alloys
Copper alloy density is not a fixed value because alloying elements like zinc, tin, aluminum, and nickel are added in varying proportions. While these elements are primarily used to enhance strength, corrosion resistance, or machinability, they also shift the material’s final mass.
Pure Copper
Pure copper has a typical density of approximately 8.96 g/cm³. It serves as the baseline for comparing all other copper alloys. Its high density is a direct result of its tightly packed atomic structure, which also grants it world-class electrical and thermal conductivity, making it the soul of electrical engineering.
Brass
Brass is a copper-zinc alloy with a typical density ranging from 8.4 to 8.7 g/cm³. Since zinc is less dense than copper, most brasses are slightly lighter than pure copper. This slight weight advantage, combined with excellent machinability, makes it a preferred choice for lightweight valves and decorative components.
Bronze
The density of bronze typically falls between 8.7 and 8.9 g/cm³. While its density remains close to that of pure copper, the addition of tin or phosphorus significantly increases hardness and wear resistance without adding excessive weight. This makes it an ideal choice for heavy-duty bearings, bushings, and industrial castings.
Aluminum Bronze
Aluminum bronze stands out as the lightweight champion of the copper family, with a density of only 7.5 to 7.8 g/cm³. This significant reduction in weight is due to the addition of aluminum. Despite being lighter, it maintains exceptional mechanical strength and superior resistance to seawater corrosion, often used in aerospace and subsea hardware.
Copper-Nickel
Copper-nickel alloys maintain a density of around 8.9 g/cm³, which is nearly identical to pure copper. Since nickel and copper have very similar densities, the alloying process has a negligible impact on weight. Its core value lies in its extreme chemical stability, making it indispensable for marine environments and heat exchanger systems.
Density of Common Copper Grades
When working with specific standardized materials, using precise density values is necessary for accurate engineering calculations. Typical density values are engineering references, and exact values may vary by standard, composition, and supplier data.
| Copper Grade | Material Type | Density (g/cm³) | Density (kg/m³) | Density (lb/in³) |
| C11000 | Electrolytic Tough Pitch Copper | 8.89 – 8.96 | 8,890 – 8,960 | 0.321 – 0.324 |
| C10100 | Oxygen-Free Copper | 8.94 | 8,940 | 0.323 |
| C26000 | Cartridge Brass | 8.53 | 8,530 | 0.308 |
| C36000 | Free-Cutting Brass | 8.50 | 8,500 | 0.307 |
| C93200 | Bearing Bronze | 8.83 | 8,830 | 0.319 |
| C95400 | Aluminum Bronze | 7.64 | 7,640 | 0.276 |
| C70600 | 90-10 Copper Nickel | 8.94 | 8,940 | 0.323 |
These grades represent common materials found in machining and casting environments. Aluminum bronze, such as C95400, stands out as significantly lighter due to its high aluminum content.
Copper Density Compared with Other Materials
Comparing copper to other industrial metals helps designers understand the weight implications of their material choices.
| Material | Density (g/cm³) | Density (kg/m³) | Density (lb/in³) | Compared with Copper |
| Aluminum | 2.70 | 2,700 | 0.098 | ~3.3x Lighter |
| Iron | 7.87 | 7,870 | 0.284 | Slightly Lighter |
| Carbon steel | 7.85 | 7,850 | 0.284 | Slightly Lighter |
| Stainless steel | 7.9 – 8.0 | 7,900 – 8,000 | 0.285 – 0.289 | Slightly Lighter |
| Brass | 8.4 – 8.7 | 8,400 – 8,700 | 0.303 – 0.314 | Slightly Lighter |
| Bronze | 8.7 – 8.9 | 8,700 – 8,900 | 0.314 – 0.321 | Close to Copper |
| Copper | 8.96 | 8,960 | 0.324 | — |
Copper is much heavier than aluminum, which is why aluminum is better when lightweight design is the priority. However, copper is only slightly heavier than iron and common steels. Copper and copper alloys remain essential when electrical conductivity, thermal conductivity, corrosion resistance, or wear resistance is important.
How to Calculate the Weight of a Copper Part
In industrial manufacturing, calculating the weight of a copper component is a critical process that transitions from digital design to physical production. We utilize five distinct methods depending on the project stage.
Basic Volume-to-Weight Calculation
This fundamental method is used during the early design phase when geometric dimensions are first established.
Formula:
Weight = Volume × Density
Example:
For a part with a volume of 100 cm³ using a pure copper density of 8.96 g/cm³:
100 cm³ × 8.96 g/cm³ = 896 g (0.896 kg)
Rapid Estimation for Raw Stock
For procurement and warehouse management, weight is often estimated based on the external dimensions of standard raw materials. The following simplified formulas use millimeters as the dimension unit and are based on a copper density of 8.96 g/cm³.
Copper Round Bar:
Weight (kg) = 0.00000703 × Diameter² × Length
Copper Plate/Sheet:
Weight (kg) = 0.00000896 × Thickness × Width × Length
Copper Tube:
Weight (kg) = 0.0000281 × Wall Thickness × (Outer Diameter − Wall Thickness) × Length
For brass, bronze, aluminum bronze, or copper-nickel alloys, the coefficient should be adjusted according to the actual alloy density.
CAD Modeling and Digital Simulation
For complex components with internal cooling channels or intricate ribs, manual calculation is insufficient.
The Process: Engineers assign specific grades, such as C11000 or C95400, to the 3D model in software like SolidWorks or UG/NX.
The Benefit: Beyond mass, CAD provides the center of gravity (CoG), which is critical for the dynamic balancing of rotating parts like impellers.
The Displacement Method (Archimedes’ Principle)
This method is used for physical parts or wax patterns where the geometry is too irregular for mathematical modeling.
Quality Control: If the measured weight of a casting is significantly lower than the displacement-calculated weight, it may indicate internal porosity, shrinkage, or material density variation.
Machining Allowance and Raw Material Requirement
In production, the net weight, which means the finished part, and the gross weight, which means the raw material, are never the same.
Calculation: To ensure precision, a 1.5 mm to 3.0 mm envelope of extra material is added to all surfaces requiring CNC machining.
Formula:
Raw Material Weight = (Net Volume + Allowance Volume) × Density + Process Loss
Summary of Calculation Methods
| Stage | Recommended Method | Key Benefit |
| Initial Quotation | Basic Formulas / Stock Shortcuts | Fast estimation for material costs. |
| Engineering Design | CAD Simulation | High precision; optimizes performance. |
| Production Planning | Machining Allowance Method | Ensures sufficient material procurement. |
| Quality Inspection | Displacement Method | Detects internal defects and voids. |
What is the Atomic Mass of Copper?
In metallurgy and materials science, atomic mass is the fundamental property that dictates a metal’s behavior. The standard atomic weight of copper is 63.546 u (commonly rounded to 63.55 for engineering calculations).
In nature, copper consists of two stable isotopes, and its atomic mass is the weighted average of their abundance:
- Copper-63 (~69.17%)
- Copper-65 (~30.83%)
This atomic mass, combined with copper’s Face-Centered Cubic (FCC) crystal structure, results in its high density of approximately 8.96 g/cm³ and exceptional conductivity. During alloying, the difference in atomic mass directly affects the final weight. For instance, replacing copper atoms with lighter aluminum atoms (atomic mass ~26.98) significantly reduces density, creating high-strength yet lightweight aluminum bronze.
Factors That Affect Copper Density
While density is often treated as a constant, several factors can cause minor variations in industrial settings:
- Alloying elements: The addition of zinc, tin, aluminum, nickel, and other elements change copper alloy density.
- Material purity: Pure copper, oxygen-free copper, and impurity-containing copper may have slight density differences.
- Temperature: As temperature increases, copper expands and density decreases slightly.
- Porosity and casting defects: Pores, shrinkage, or looseness can make the measured density lower than theoretical density.
- Material condition: Processing and heat treatment usually affect density less than composition, but may still matter in precise calculations.
For cast copper alloy parts, theoretical density should be considered together with casting quality and internal soundness.
Industrial Applications of Copper Density
In industrial engineering, the high density of copper is often a calculated trade-off. Its mass is synonymous with high atomic packing, which delivers the superior conductivity and durability required in critical sectors:
- Power & Electrical Infrastructure: Copper’s density allows for the highest electrical conductivity per volume. This enables the design of compact transformers and motors that handle high current loads without the excessive bulk required by lighter but less conductive materials.
- Thermal Management & Electronics: Because copper is denser than aluminum, it possesses a higher thermal mass. In heat sinks and EV cold plates, this density allows for superior heat absorption and dissipation within a smaller physical footprint.
- Marine & Fluid Control: The density of copper alloys (such as Aluminum Bronze) is a key indicator of their structural integrity. It is the material of choice for high-pressure valves and pump impellers that must resist saltwater corrosion and mechanical wear for decades.
- Heavy Machinery: The substantial mass of copper-based bushings and bearings provides the essential vibration dampening and load-bearing stability required in heavy industrial equipment.
While materials like aluminum offer a weight advantage, copper is selected when performance density is the priority. In applications ranging from subsea power cables to high-performance microprocessors, copper’s density is the physical foundation for its unmatched electrical, thermal, and anti-corrosive reliability.
FAQ
1. What is the density of copper in Imperial units (lb/in³)?
In international engineering and trade, copper density is approximately 0.324 lb/in³. This is a critical reference for calculating shipping weights and material costs in regions using the Imperial system.
- Conversion: 8.96 g/cm³ × 0.036127 ≈ 0.324 lb/in³.
2. Is copper heavier than steel and aluminum?
Yes. Copper is significantly heavier than aluminum (about 3.3 times denser) and slightly heavier than common carbon steel (approx. 8.96 g/cm³ vs. 7.85 g/cm³). While heavier, copper is chosen for its superior conductivity and corrosion resistance which steel and aluminum cannot match.
3. Why does the actual density of a part sometimes differ from the handbook value?
The standard 8.96 g/cm³ value refers to pure copper in a lab environment. In industrial practice, actual density may be slightly lower due to:
- Alloying Elements: The addition of lighter metals like Zinc or Aluminum.
- Manufacturing Process: Castings may contain micro-porosity, whereas wrought or forged parts are more compact.
- Impurity Levels: Even trace elements can cause minor fluctuations in mass.
4. How does copper alloy density affect casting costs?
Density directly impacts the material consumption rate. A higher density means more raw material is required to fill the same mold volume. For project managers, accurate density values are essential for calculating the “Gross Weight” (including gating and risers) versus the “Net Weight” to ensure precise cost estimation.
Conclusion
The average density of copper, approximately 8.96 g/cm³, serves as a core benchmark in engineering calculations. While significantly heavier than aluminum and slightly denser than steel, copper alloy density fluctuates depending on specific compositions and grades.
In practice, precise density data is the foundation for cost control, blank design, and logistics planning. Despite its weight, copper and its alloys remain indispensable in modern industry due to their superior electrical, thermal, and corrosion-resistant properties. Understanding the density variations across different grades empowers engineers to achieve the optimal balance between material performance and structural weight optimization.
