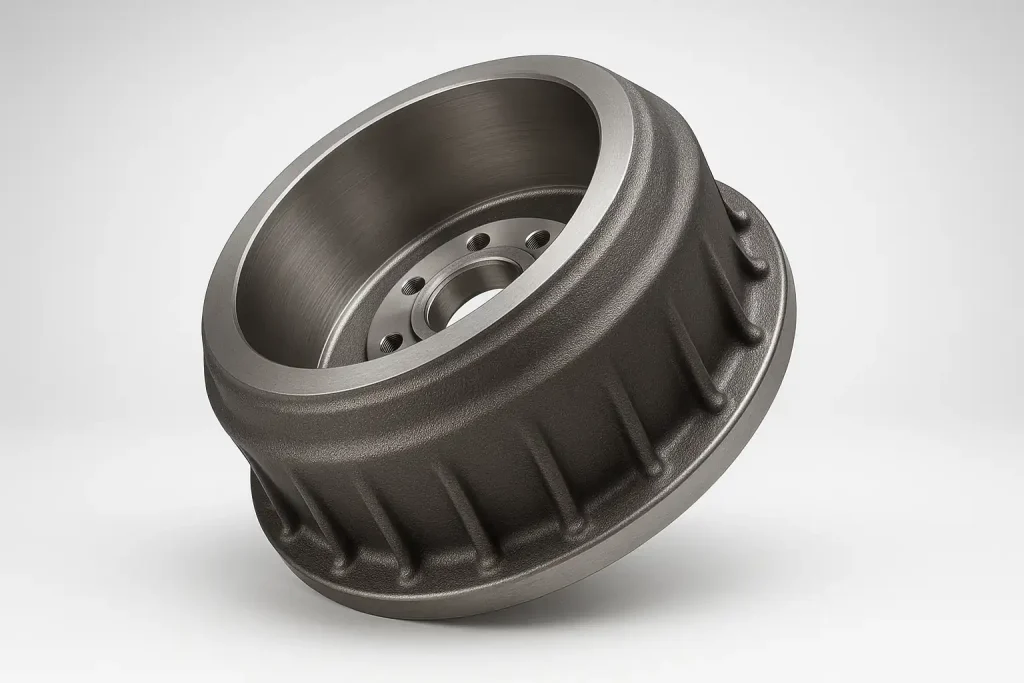

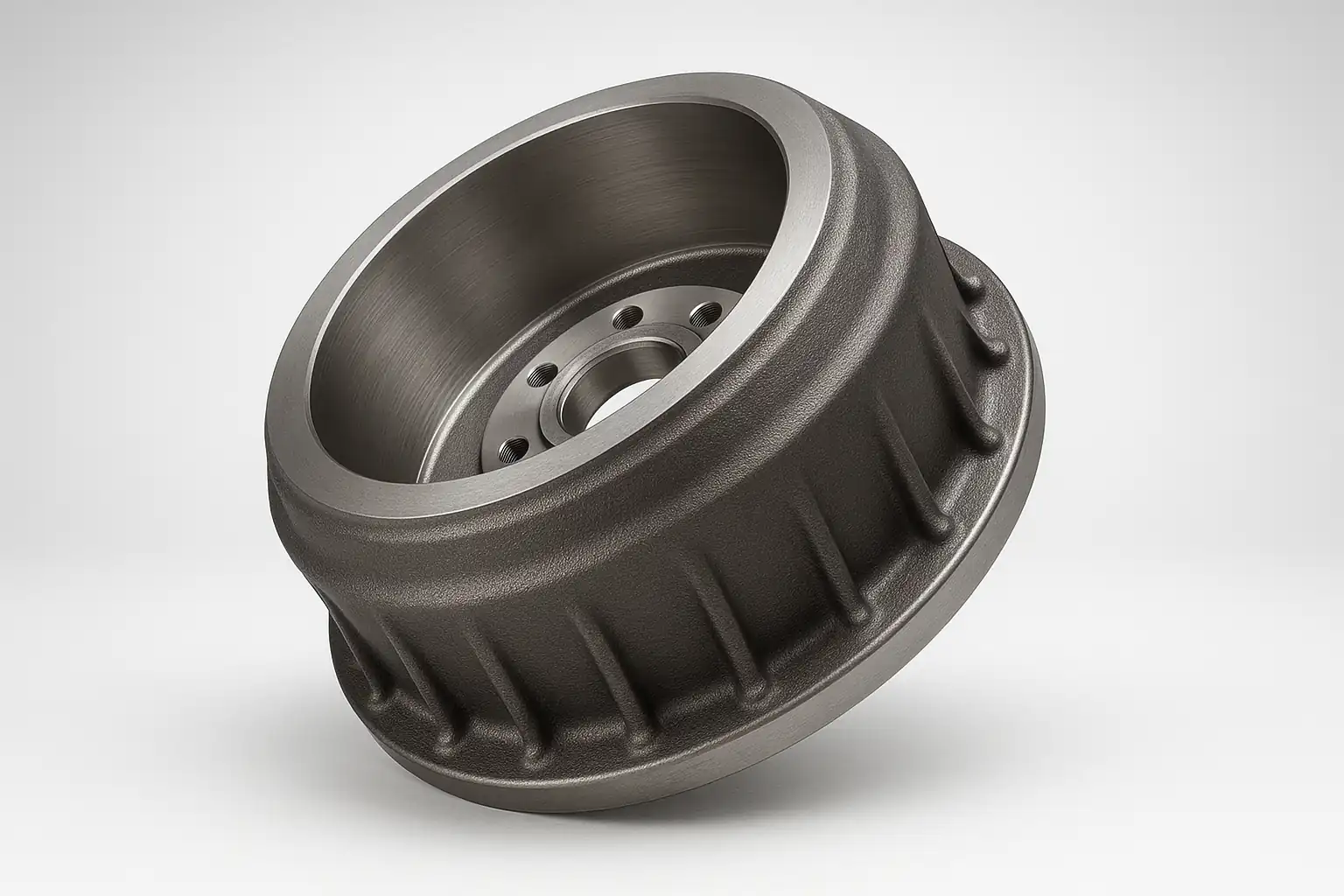

Brake Drum
Robust cast iron brake drum engineered for commercial and industrial vehicles. Manufactured using sand casting for strength and durability, with precision-machined surfaces to ensure smooth braking performance, heat resistance, and long service life.
Parameter | Value |
---|---|
Product Name | Brake Drum |
Material | Gray Cast Iron (HT250 / ASTM A48 Class 35) |
Casting Process | Resin Sand Casting |
Weight | 9.8 kg |
Dimensions | Ø 265 mm × H 145 mm |
Surface Finish | Machined Inner Bore and Friction Surface |
Application | Commercial Vehicle Brake Systems |
Standard | ISO 185 / SAE J431 |
